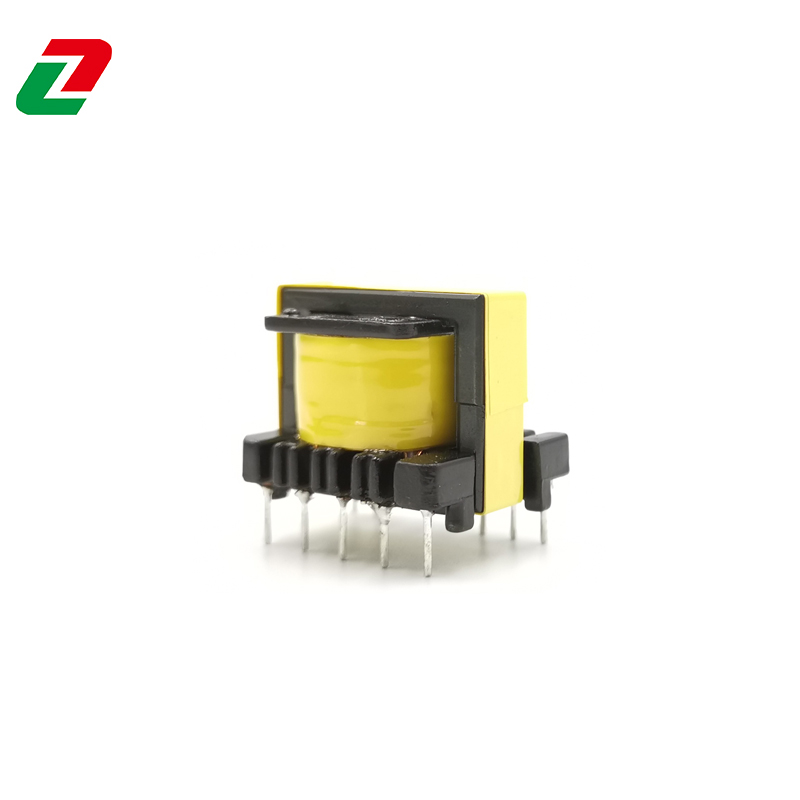

详细介绍
| 规格 | 封装形式 | 长(mm) | 宽(mm) | 高(mm) | 一次侧排针 | 二次侧排针 | 排距(mm) | 针径(mm) | ||
| A | B | C | 数量 | 针距(mm) | 数量 | 针距(mm) | ||||
| EE05-001 | 卧式贴片 | 6.0 | 5.2 | 5.0 | 3 | 1.85 | 3 | 1.85 | 7.70 | SQ0.20*0.55 |
| EE05-002 | 卧式贴片 | 6.0 | 5.5 | 5.0 | 3 | 1.85 | 3 | 1.85 | 7.70 | SQ0.20*0.55 |
| EE08-001 | 立式插针 | 8.8 | 8.0 | 9.2 | 3 | 2.50 | 3 | 2.50 | 6.00 | Ø0.50 |
| EE08-002 | 立式插针 | 8.8 | 8.0 | 10.0 | 3 | 2.50 | 3 | 2.50 | 6.00 | SQ0.40*0.40 |
| EE08-003 | 卧式插针 | 8.8 | 9.0 | 9.5 | 2 | 5.00 | 2 | 5.00 | 6.80 | SQ0.40*0.40 |
| EE08-004 | 卧式插针 | 8.8 | 9.0 | 9.5 | 3 | 2.50 | 3 | 2.50 | 7.00 | Ø0.50 |
| EE10-001 | 立式插针 | 10.5 | 10.0 | 11.0 | 4 | 2.50 | 4 | 2.50 | 8.00 | Ø0.50 |
| EE10-002 | 卧式插针 | 11.0 | 12.5 | 11.0 | 4 | 2.50 | 4 | 2.50 | 10.50 | Ø0.60 |
| EE10-003 | 卧式插针 | 11.0 | 11.5 | 11.0 | 2 | 5.00 | 2 | 5.00 | 9.00 | Ø0.60 |
| EE10-004 | 卧式插针 | 11.0 | 11.5 | 11.0 | 2 | 5.00 | 2 | 5.00 | 9.00 | Ø0.60 |
| EE10-005 | 卧式插针 | 11.0 | 12.5 | 13.5 | 4 | 2.50 | 4 | 2.50 | 10.40 | Ø0.60 |
| EE12-001 | 卧式插针 | 12.5 | 15.0 | 9.3 | 2 | 6.00 | 2 | 6.00 | 12.00 | SQ0.50*0.50 |
| EE12.5-001 | 立式插针 | 13.0 | 12.5 | 9.0 | 5 | 2.50 | 5 | 2.50 | 7.50 | Ø0.60 |
| EE12.7-001 | 立式插针 | 12.8 | 12.3 | 11.0 | 5 | 2.50 | 5 | 2.50 | 8.50 | Ø0.60 |
| EE13-001 | 立式插针 | 10.5 | 12.5 | 13.0 | 3 | 3.00 | 3 | 3.00 | 9.00 | Ø0.60 |
| EE13-002 | 立式插针 | 13.0 | 12.5 | 13.5 | 5 | 2.50 | 5 | 2.50 | 8.50 | SQ0.50*0.50 |
| EE13-003 | 立式插针 | 15.5 | 16.5 | 14.5 | 5 | 2.50 | 2 | 3.00 | 13.00 | Ø0.60 |
| EE13-004 | 卧式插针 | 14.0 | 14.0 | 13.5 | 5 | 2.50 | 5 | 2.50 | 10.30 | Ø0.60 |
| EE13-005 | 卧式插针 | 14.0 | 17.8 | 13.5 | 5 | 2.50 | 4 | 3.00 | 15.50 | Ø0.60 |
| EE13-006 | 卧式插针 | 14.0 | 19.9 | 13.8 | 5 | 2.70 | 2 | 9.00 | 16.00 | Ø0.60 |
| EE14-001 | 卧式插针 | 15.0 | 15.0 | 8.0 | 2 | 6.00 | 2 | 6.00 | 12.00 | Ø0.60 |
| EE16-001 | 立式插针 | 16.5 | 12.5 | 15.0 | 3 | 3.00 | 3 | 3.00 | 9.00 | Ø0.60 |
| EE16-002 | 立式插针 | 16.5 | 13.1 | 18.0 | 5 | 3.20 | 5 | 3.20 | 10.60 | SQ0.50*0.50 |
| EE16-003 | 立式插针 | 16.5 | 12.5 | 15.0 | 2 | 9.00 | 2 | 9.00 | 9.60 | Ø0.60 |
| EE16-004 | 卧式插针 | 19.5 | 18.5 | 16.5 | 5 | 3.25 | 6 | 3.25 | 15.50 | Ø0.80 |
| EE16-005 | 卧式插针 | 16.5 | 15.0 | 14.5 | 4 | 3.00 | 4 | 3.00 | 11.00 | Ø0.60 |
| EE16-006 | 卧式插针 | 16.5 | 16.0 | 14.5 | 5 | 2.50 | 5 | 2.50 | 13.00 | Ø0.60 |
| EE16-007 | 卧式插针 | 16.5 | 19.0 | 13.5 | 5 | 2.50 | 5 | 2.50 | 15.50 | Ø0.70 |
| EE19-001 | 立式插针 | 19.5 | 14.0 | 16.0 | 3 | 5.00 | 3 | 5.00 | 11.00 | Ø0.70 |
| EE19-002 | 立式插针 | 22.0 | 16.0 | 19.0 | 5 | 4.00 | 5 | 4.00 | 10.00 | Ø0.80 |
| EE19-003 | 立式插针 | 19.5 | 14.0 | 16.0 | 2 | 8.00 | 2 | 8.00 | 9.60 | Ø0.70 |
| EE19-004 | 立式插针 | 19.5 | 14.0 | 17.0 | 4 | 4.00 | 3 | 4.00 | 11.00 | Ø0.70 |
| EE19-005 | 立式插针 | 19.5 | 15.7 | 19.0 | 6 | 2.70 | 4 | 3.50 | 12.10 | Ø0.60 |
| EE19-006 | 卧式插针 | 19.5 | 16.3 | 12.5 | 4 | 4.78 | 4 | 4.78 | 12.75 | Ø0.70 |
| EE19-007 | 卧式插针 | 19.5 | 17.3 | 12.5 | 5 | 3.00 | 5 | 3.00 | 12.50 | Ø0.70 |
| EE19-008 | 卧式插针 | 19.5 | 17.4 | 11.1 | 6 | 2.50 | 4 | 2.5/7.5 | 14.20 | SQ0.40*0.60 |
| EE19-009 | 卧式插针 | 19.5 | 16.0 | 14.8 | 4 | 4.75 | 4 | 4.75 | 12.50 | Ø0.70 |
| EE20-001 | 立式插针 | 21.0 | 16.0 | 21.0 | 3 | 5.00 | 3 | 5.00 | 12.50 | Ø0.70 |
| EE22-001 | 立式插针 | 23.0 | 16.0 | 23.0 | 5 | 4.00 | 5 | 4.00 | 10.00 | Ø0.80 |
| EE22-002 | 卧式插针 | 23.0 | 16.0 | 13.2 | 4 | 4.25/4.8 | 4 | 4.25/4.8 | 13.00 | Ø0.70 |
| EE22-003 | 卧式插针 | 23.0 | 22.5 | 20.5 | 5 | 4.00 | 4 | 5.00 | 17.00 | Ø0.60 |
| EE25-001 | 立式插针 | 26.0 | 17.2 | 22.0 | 4 | 5.00 | 4 | 5.00 | 12.00 | Ø0.80 |
| EE25-002 | 立式插针 | 26.0 | 20.5 | 22.0 | 5 | 5.00 | 5 | 5.00 | 15.00 | Ø0.80 |
| EE25-003 | 立式插针 | 26.0 | 25.0 | 15.6 | 5 | 5.0/6.0 | 5 | 5.0/6.0 | 22.00 | SQ0.64*0.64 |
| EE25-004 | 卧式插针 | 26.0 | 20.5 | 17.5 | 4 | 4.00 | 4 | 4.00 | 15.00 | Ø0.80 |
| EE25-005 | 卧式插针 | 26.3 | 27.5 | 25.0 | 4 | 5.00 | 4 | 5.00 | 20.00 | Ø0.80 |
| EE28-001 | 立式插针 | 29.0 | 22.0 | 21.0 | 5 | 5.00 | 5 | 5.00 | 17.50 | Ø0.80 |
| EE30-001 | 立式插针 | 31.0 | 22.0 | 27.0 | 5 | 5.00 | 5 | 5.00 | 17.50 | Ø0.80 |
| EE33-001 | 立式插针 | 34.0 | 29.0 | 32.0 | 6 | 5.00 | 6 | 5.00 | 22.70 | Ø0.80 |
| EE40-001 | 立式插针 | 41.0 | 28.0 | 34.0 | 6 | 5.00 | 6 | 5.00 | 22.60 | Ø0.80 |
| EE40-002 | 卧式插针 | 41.0 | 32.0 | 28.5 | 7 | 5.00 | 7 | 5.00 | 25.80 | Ø0.80 |
| EE42-001 | 立式插针 | 43.0 | 39.0 | 44.0 | 6 | 5.00 | 6 | 5.00 | 32.20 | Ø1.00 |
| EE42-002 | 卧式插针 | 43.0 | 40.0 | 36.5 | 8 | 5.00 | 8 | 5.00 | 35.00 | Ø1.00 |
| EE42-003 | 卧式插针 | 43.0 | 44.0 | 39.0 | 8 | 5.00 | 8 | 5.00 | 35.50 | Ø1.00 |
| EE55-001 | 卧式插针 | 56.0 | 56.0 | 48.0 | 7 | 5.00 | 7 | 5.00 | 40.00 | Ø1.00 |
| EE65-001 | 立式插针 | 66.0 | 55.0 | 65.0 | 10 | 5.0/8.0 | 6 | 5.0/24.5 | 45.50 | Ø1.30 |
